Hydrophyllaceae

Disclaimer

Content is from Kirkbride et al. 2006Kirkbride et al. 2006:
Kirkbride JH, Jr, Gunn CR, and Dallwitz MJ. 2006. Family guide for fruits and seeds, vers. 1.0. Accessed September 2020-January 2022. URL:  https://nt.ars-grin.gov/seedsfruits/keys/frsdfam/index.cfm ., without modification.
Updates are forthcoming.

Taxonomy

Hydrophyllaceae R. Brown

Common name: Waterleaf Family.

Number of genera: 17 genera.

Number of species (Mabberley 1997): 275 species.

Disseminule

Fruit (dehisced), or fruit (intact or entire), or seed.

Description

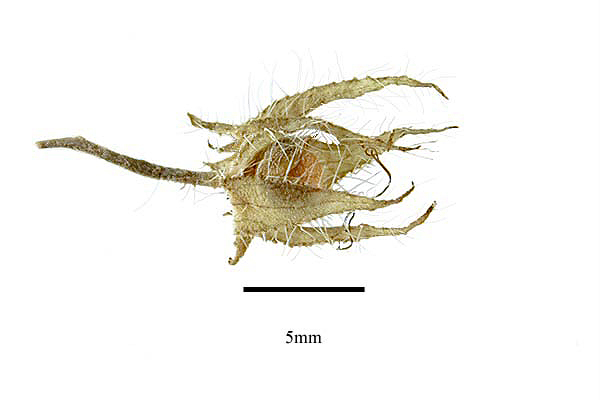

Fruits: Pistil(s) compound; 1; 1-pistillate; with carpels united. Fruit pericarpium; simple; capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
; foraminicidalforaminicidal:
type of capsular dehiscence, fruits opening irregularly
capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
, or loculicidalloculicidal:
type of capsular dehiscence, opening longitudinally through the locules (compare septicidal)
capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
(Phacelia), or septicidalsepticidal:
type of capsular dehiscence, opening longitudinally by separating between the septa of adjacent carpels
capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
; capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
not inflated; capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
without operculumoperculum:
a dehiscent cap (or lid) of a seed or fruit that opens during germination or dehiscence
; without persistent central column; with styles(s); at apexapex:
the point farthest from the point of attachment, or the "tip" of an organ
; within accessory organ(s); within calyxcalyx:
the outer whorl of the perianth; all the sepals of a flower
(Hydrolea); more than 1 but less than 10-seeded; 4–8-seeded; with 2(–4)-carpellate; with carpels united; with carpels remaining united at maturity; without sterilesterile:
lacking male and/or female reproductive parts; also, not producing fruit or seed
carpels; sulcatesulcate:
surface relief—having one or more elongate, relatively narrow and shallow depressions or grooves
; in transection tereteterete:
approximately circular in cross section; width and thickness approximately equal
; wall membranaceousmembranous:
texture—extremely thin, pliable, and fairly tough
, or fleshy (nearly); dehiscentdehiscent:
(v. dehisce) splitting open at maturity to release contents (of a fruit)
, or indehiscentindehiscent:
not opening on its own, as in a fruit
. Dehiscentdehiscent:
(v. dehisce) splitting open at maturity to release contents (of a fruit)
unit seed(s). Dehiscentdehiscent:
(v. dehisce) splitting open at maturity to release contents (of a fruit)
passively (assumed); at apexapex:
the point farthest from the point of attachment, or the "tip" of an organ
; and shedding seeds; without replumreplum:
the rim, formed by the persistent placentas, and connected by a false septum in Brassicaceae fruits. The fruit valves are attached to this rim and separate from it in dehiscent fruits.
. Epicarpepicarp:
outer layer of fruit wall or pericarp, if divided into layers; note here used synonymously with exocarp
blue, or brown (all shades); durable; glabrousglabrous:
without hairs
, or not glabrousglabrous:
without hairs
(with hairs); hairs short; hairs not glandularglandular:
surface relief—covered with small, raised secretory glands, regular or irregularly shaped, translucent or opaque, and maybe distinctly colored
; without armature; smooth; without wing(s); without apicalapical:
at or pertaining to the end of the seed or fruit distal from its point of attachment (i.e., base)
respiratory hole. Mesocarpmesocarp:
the middle layer of the pericarp, if divided into layers
absent. Endocarpendocarp:
the inner layer of the pericarp, if divided into layers
present; not separating from exocarpexocarp:
outer layer of fruit wall or pericarp, if divided into layers; note here used synonymously with epicarp
; thin; not splitting into 1-seeded pyrenes; smooth; without wing; without operculumoperculum:
a dehiscent cap (or lid) of a seed or fruit that opens during germination or dehiscence
; without secretory cavities; without mechanism for seedling escape; without grooves; without longitudinallongitudinal:
of or relating to length or the lengthwise dimension
ridges. Funiculusfuniculus:
(alt. funicle) stalk connecting the ovule (later seed) to the ovary (later fruit) placenta
short; short without seed bearing hookswith hooks:
bristles or spines with curved or backwards pointing tips, or with secondary bristles along their length
(retinacula); not persisting in fruit after seed shed.

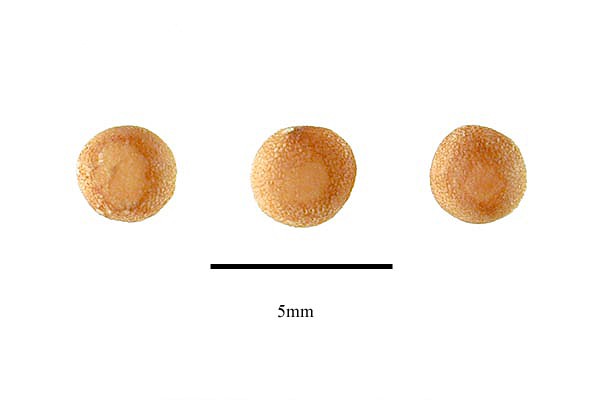

Seeds: Arilaril:
(broad sense) appendicular structure that wholly or partly envelops a seed and is produced from or a modification of the funicle, raphe, or outer integument; usually fleshy or pulpy, sometimes spongy or tufted-capillate, often brightly colored
absent, or present (Nemophila); an arillike structure. Arillike structure falling with seed an elaisome (Nemop hilahilum:
on seeds, the scar indicating where the funiculus was attached; on grass caryopses, the scar visible on the outer fruit surface revealing where the seed is attached on the inner fruit wall surface; or in Asteraceae cypselae, the scar visible on the outer fruit wall revealing where the fruit was attached to the receptacle
& fleshy). Seed larger than minute, or minute; less than 1 mm long to 1 to less than 5 mm long; 0.8–2.1 mm long; circularcircular:
(of embryo) linear embryo is curved into an "O" shape
, or ovateovate:
2D shape—egg-shaped in outline, widest point is towards one end of the organ, the other end tapers gradually, attachment at or near the broad end (compare obovate, ovoid)
, or oblongoblong:
2D shape—much longer than broad with nearly parallel sides, corners are rounded
, or straight, or C-shapedC-shaped:
2D-shape—semiannulate, curved into the shape of the letter 'C'
; in transection tereteterete:
approximately circular in cross section; width and thickness approximately equal
; not bowl shaped; not nutlike; without winglike beakbeak:
a usually firm, terminal appendage, sometimes tapered
; without caudatecaudate:
tapering to a long, tail-like appendage
appendage(s); at maturity with food reserves; with endosperm; without canavanine. Sarcotestasarcotesta:
pulpy or fleshy outer layer of the seed coat, simulates aril
absent. Testatesta:
seed coat
present; without fleshy or leatheryleathery:
texture—moderately thick, tough, and very pliable
layer over hard layer; tight, or loose; dulldull:
reflecting only a low proportion of incident light, with no apparent sheen
(assumed); surface unsmooth, or smooth; surface with depressed features, or discreet raised features, or merged raised features; surface pittedpitted:
surface relief—surface with small depressions in which the areas between the hollows do not take on the appearance of a true reticular net
, or groovedgrooved:
surface relief—linear depressions that may be single or form a series of grooves over the surface
(longitudinally); surface tuberculatetuberculate:
surface relief—bearing small, warty, swelling, rounded, or variously shaped projections
; surface ruminateruminate:
testa or seed coat folded into the endosperm
, or reticulatereticulate:
surface relief—netted, raised walls or concave grooves forming a net-like surface pattern with flat, concave, or convex interspaces
, or ribbedribbed:
surface relief—wide, prominent, linear ridges that are generally rounded and longitudinally situated on the surface
(longitudinallongitudinal:
of or relating to length or the lengthwise dimension
or laterally); without crease or line separating cotyledons from hypocotyl-radicle; without notch along margin where cotyledons from hypocotyl-radicle tip approach each other; without glands; without bristles; glabrousglabrous:
without hairs
; without wings; without collar; without operculumoperculum:
a dehiscent cap (or lid) of a seed or fruit that opens during germination or dehiscence
; colored; monochrome; brown (all shades), or yellow, or black, or red; membranousmembranous:
texture—extremely thin, pliable, and fairly tough
; not becoming mucilaginousmucilaginous:
resembling mucilage; moist and sticky
when wetted; surrounding food reserve. Endosperm development cellular, or nuclear (occasionally); copious to scant; fleshy, or hard (seldom); smooth; with oils; without fatty acid containing cyclopropene; without apicalapical:
at or pertaining to the end of the seed or fruit distal from its point of attachment (i.e., base)
lobes; without chlorophyll; without isodiametric faceted surface; without odor. Embryo differentiated from food reserve; well developed; 1 per seed; partially filling testatesta:
seed coat
(with food reserve), or nearly filling testatesta:
seed coat
(trace or scanty food reserve); 0.2–1 times the length of food reserve; at one end of seed not extending into a depression or cup; axileaxile:
on or of the axis
and centric, or axileaxile:
on or of the axis
and excentric; foliatefoliate:
appearing leaf-like
, or linearlinear:
(shape) long, narrow, and uniform in width; (of embryo) embryo is straight and much longer than wide
; with spatulatespatulate:
2D shape—like a spatula; rounded at the apex, with base long and tapered; (of embryo) embryo is straight and axile and centric with the cotyledons expanded to form the shape of a spatula or spoon; (of cotyledons) cotyledons expanded and wider than the stalk but not invested into the stalk
cotyledons; straight; parallel to seed length; with cotyledons abruptly connected to hypocotyl-radicle, or gradually connected to hypocotyl-radicle; without coleorhiza; without simmondsin; without stomata; not green; with 2 or more cotyledons. Cotyledons 2; well developed, or moderately developed; 0.2–0.7 times length of embryo; as wide as hypocotyl-radicle, or somewhat to significantly wider than hypocotyl-radicle, or not as wide as hypocotyl-radicle (Nama); 1–3 times wider than hypocotyl-radicle; not concealing hypocotyl-radicle; thin; flat; corrugate; with apicesapex:
the point farthest from the point of attachment, or the "tip" of an organ
entire; with margins separate; basally cordatecordate:
2D shape—heart-shaped, with attachment at or near the broad end (compare obcordate)
; equal in size; not punctatepunctate:
surface relief—dotted with pits or with translucent, sunken glands or with colored dots, similar to pitted
dotted. Hypocotyl-radicle well developed, or moderately developed; straight; not thickened.

Distribution

General distribution: New World.

Detailed distribution: North America.

References

Literature specific to this family: Bacon, J.D. 1989. Seed coat morphology of Draperia systyla (Hydrophyllaceae) and its importance to the systematics of Nama. Sida 13:461–466; Davenport, L.J. 1988. A monograph of Hydrolea (Hydrophyllaceae). Rhodora 90:169–208; Chuang, T.I. & L. Constance. 1992. Seeds and systematics in Hydrophyllaceae: Tribe Hydrophylleae. Amer. J. Bot. 79:257–264.

General references: Corner, E.J.H. 1976. The seeds of Dicots, esp. vol. 2. Cambridge University Press, New York, Cronquist, A. 1981. An integrated system of classification of flowering plants, 1,262 p. Columbia University Press, New York, Gaertner, J. 1788–1805. De fructibus et seminibus plantarum. The Author, Stuttgart, Goldberg, A. 1986 (dicots) & 1989 (monocots). Classification, evolution, and phylogeny of the familes of Dicotyledons. Smithsonian Contr. Bot. 58 for dicots (314 pp.) & 71 for monocots (74 pp.). [Goldberg's illustrations are reproduced from older publications and these should be consulted], Gunn, C.R. & C.A. Ritchie. 1988. Identification of disseminulesdisseminule:
