Hamamelidaceae

Disclaimer

Content is from Kirkbride et al. 2006Kirkbride et al. 2006:
Kirkbride JH, Jr, Gunn CR, and Dallwitz MJ. 2006. Family guide for fruits and seeds, vers. 1.0. Accessed September 2020-January 2022. URL: https://nt.ars-grin.gov/seedsfruits/keys/frsdfam/index.cfm .
, without modification. Updates are forthcoming.

Taxonomy

Hamamelidaceae R. Brown

Common name: Witch-hazel Family.

Number of genera: 30 genera.

Number of species (Mabberley 1997): 90 species.

Disseminule

Fruit (dehisced), or seed.

Description

Fruits: Fruit pericarpium; simple, or schizocarpschizocarp:
usually dry fruit splitting between two or more locules to form distinct, indehiscent, usually one seeded segments; fruit derived from a single, superior or inferior, compound ovary; compare to mericarp
, or compound; capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
; coccarium (Mytilaria laosensis Spjut Fig. 22A); capsiconum (Liquidamber Spjut Fig. 15B-C & 5 families: Cunoniaceae, Hamamelidaceae, Myrtaceae, Salicaceae, Saururaceae); ceratium capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
(Distylium), or septicidalsepticidal:
type of capsular dehiscence, opening longitudinally by separating between the septa of adjacent carpels
capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
, or loculicidalloculicidal:
type of capsular dehiscence, opening longitudinally through the locules (compare septicidal)
capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
(or both septicidalsepticidal:
type of capsular dehiscence, opening longitudinally by separating between the septa of adjacent carpels
& loculicidalloculicidal:
type of capsular dehiscence, opening longitudinally through the locules (compare septicidal)
); capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
not inflated; capsulecapsule:
a dry, dehiscent fruit derived from a compound ovary
without operculumoperculum:
a dehiscent cap (or lid) of a seed or fruit that opens during germination or dehiscence
; without persistent central column; 1-seeded; less than 1 cm long to from 1–5 cm long (at least); 1–1.5 cm long (at least); with carpels united; with carpels remaining united at maturity; without sterilesterile:
lacking male and/or female reproductive parts; also, not producing fruit or seed
carpels; not sulcatesulcate:
surface relief—having one or more elongate, relatively narrow and shallow depressions or grooves
; in transection tereteterete:
approximately circular in cross section; width and thickness approximately equal
; apexapex:
the point farthest from the point of attachment, or the "tip" of an organ
beaked, or not beaked; dehiscentdehiscent:
(v. dehisce) splitting open at maturity to release contents (of a fruit)
. Dehiscentdehiscent:
(v. dehisce) splitting open at maturity to release contents (of a fruit)
unit seed(s). Dehiscentdehiscent:
(v. dehisce) splitting open at maturity to release contents (of a fruit)
regularly; actively (is there an idehiscent fruit?); explosively; at apexapex:
the point farthest from the point of attachment, or the "tip" of an organ
; and shedding seeds; without replumreplum:
the rim, formed by the persistent placentas, and connected by a false septum in Brassicaceae fruits. The fruit valves are attached to this rim and separate from it in dehiscent fruits.
. Epicarpepicarp:
outer layer of fruit wall or pericarp, if divided into layers; note here used synonymously with exocarp
brown (all shades) (at least); dulldull:
reflecting only a low proportion of incident light, with no apparent sheen
(at least); durable; leatheryleathery:
texture—moderately thick, tough, and very pliable
, or hard; glabrousglabrous:
without hairs
, or not glabrousglabrous:
without hairs
(with hairs) (tomentosetomentose:
surface relief—pubescence that is bent and matted, forming a woolly coating; often the hairs are silver or gray-colored
& stellatestellate:
star-shaped; with radiating branches
hairs); hairs not glandularglandular:
surface relief—covered with small, raised secretory glands, regular or irregularly shaped, translucent or opaque, and maybe distinctly colored
; without armature; without wing(s); without apicalapical:
at or pertaining to the end of the seed or fruit distal from its point of attachment (i.e., base)
respiratory hole. Mesocarpmesocarp:
the middle layer of the pericarp, if divided into layers
present; fleshy; composed of 1 unified layer; without lactiform cavity system. Endocarpendocarp:
the inner layer of the pericarp, if divided into layers
present; separating spontaneously from exocarpexocarp:
outer layer of fruit wall or pericarp, if divided into layers; note here used synonymously with epicarp
; thin, or bonybony:
very hard and rather brittle, like bone
; not splitting into 1-seeded pyrenes; smooth; without wing; without operculumoperculum:
a dehiscent cap (or lid) of a seed or fruit that opens during germination or dehiscence
; without secretory cavities; without mechanism for seedling escape; without grooves; without longitudinallongitudinal:
of or relating to length or the lengthwise dimension
ridges. Funiculusfuniculus:
(alt. funicle) stalk connecting the ovule (later seed) to the ovary (later fruit) placenta
short; short without seed bearing hookswith hooks:
bristles or spines with curved or backwards pointing tips, or with secondary bristles along their length
(retinacula); not persisting in fruit after seed shed.

Seeds: Arilaril:
(broad sense) appendicular structure that wholly or partly envelops a seed and is produced from or a modification of the funicle, raphe, or outer integument; usually fleshy or pulpy, sometimes spongy or tufted-capillate, often brightly colored
absent. Seed larger than minute; 5 to less than 10 mm long; 6–9 mm long; ellipsoidellipsoid:
3D shape—elliptic
, or ovateovate:
2D shape—egg-shaped in outline, widest point is towards one end of the organ, the other end tapers gradually, attachment at or near the broad end (compare obovate, ovoid)
; in transection tereteterete:
approximately circular in cross section; width and thickness approximately equal
, or compressedcompressed:
flattened; in grasses, used to denote compression (not necessarily flattened) either laterally or dorsiventrally
; not bowl shaped; not nutlike; without winglike beakbeak:
a usually firm, terminal appendage, sometimes tapered
; without caudatecaudate:
tapering to a long, tail-like appendage
appendage(s); at maturity with food reserves; with endosperm, or perispermperisperm:
seed nutritive tissue comparable to the endosperm, but derived from the nucellus (maternal tissue)
(Corner for genera like Distylium & Hamamelis); without canavanine. Sarcotestasarcotesta:
pulpy or fleshy outer layer of the seed coat, simulates aril
absent. Testatesta:
seed coat
present; without markedly different marginalmarginal:
at, on, or close to the margin or border
tissue; without fleshy or leatheryleathery:
texture—moderately thick, tough, and very pliable
layer over hard layer; loose; dulldull:
reflecting only a low proportion of incident light, with no apparent sheen
, or shinyshiny:
uniformly reflecting a high proportion of incident light at all angles
; surface smooth, or unsmooth; surface with merged raised features; surface glandularglandular:
surface relief—covered with small, raised secretory glands, regular or irregularly shaped, translucent or opaque, and maybe distinctly colored
blisters, or reticulatereticulate:
surface relief—netted, raised walls or concave grooves forming a net-like surface pattern with flat, concave, or convex interspaces
; without crease or line separating cotyledons from hypocotyl-radicle; without notch along margin where cotyledons from hypocotyl-radicle tip approach each other; without glands; without bristles; glabrousglabrous:
without hairs
; without wings, or with wing(s); 1-winged; with wing at one end; with wing(s) solid; without collar; without operculumoperculum:
a dehiscent cap (or lid) of a seed or fruit that opens during germination or dehiscence
; colored; monochrome; brown (all shades), or black; hard; not becoming mucilaginousmucilaginous:
resembling mucilage; moist and sticky
when wetted; surrounding food reserve. Hilumhilum:
on seeds, the scar indicating where the funiculus was attached; on grass caryopses, the scar visible on the outer fruit surface revealing where the seed is attached on the inner fruit wall surface; or in Asteraceae cypselae, the scar visible on the outer fruit wall revealing where the fruit was attached to the receptacle
larger than punctatepunctate:
surface relief—dotted with pits or with translucent, sunken glands or with colored dots, similar to pitted
. Endosperm development nuclear, or cellular (Parrotropsis); moderate, or scant; cartilaginouscartilaginous:
texture—firm, dense, tough, somewhat pliable, and resilient, like cartilage
, or fleshy; smooth; with oils and proteins; without fatty acid containing cyclopropene; without apicalapical:
at or pertaining to the end of the seed or fruit distal from its point of attachment (i.e., base)
lobes; without chlorophyll; without isodiametric faceted surface; without odor. Perispermperisperm:
seed nutritive tissue comparable to the endosperm, but derived from the nucellus (maternal tissue)
Corner recorded present in some genera like Distylium & Hamamelis, but gave no amount; opaqueopaque:
not transmitting light
. Embryo differentiated from food reserve; well developed; 1 per seed; partially filling testatesta:
seed coat
(with food reserve); 0.6 times the length of food reserve; at one end of seed not extending into a depression or cup; axileaxile:
on or of the axis
and centric; foliatefoliate:
appearing leaf-like
; with spatulatespatulate:
2D shape—like a spatula; rounded at the apex, with base long and tapered; (of embryo) embryo is straight and axile and centric with the cotyledons expanded to form the shape of a spatula or spoon; (of cotyledons) cotyledons expanded and wider than the stalk but not invested into the stalk
cotyledons, or investinginvesting:
(of embryo) embryo is nearly or completely filling seed coat, straight, and axile and centric with spatulate cotyledons and covering the stalk for at least half its length; (of cotyledons) cotyledons spatulate and covering the stalk for at least half its length
cotyledons (barely); straight; parallel to seed length; with cotyledons abruptly connected to hypocotyl-radicle; without coleorhiza; without simmondsin; without stomata; not green; with 2 or more cotyledons. Cotyledons 2; well developed; 0.6–0.8 times length of embryo; somewhat to significantly wider than hypocotyl-radicle; 2–2.4 times wider than hypocotyl-radicle; not concealing hypocotyl-radicle; foliaceous; thin; flat (or with curled edges); smooth; with apicesapex:
the point farthest from the point of attachment, or the "tip" of an organ
entire; with margins separate; basally entire; equal in size; not punctatepunctate:
surface relief—dotted with pits or with translucent, sunken glands or with colored dots, similar to pitted
dotted. Hypocotyl-radicle moderately developed; straight; not thickened.

Distribution

General distribution: Pansubtropical and pantemperate (except Old World tropics and Europe). New World and Old World.

Detailed distribution: North America to Australia.

References

Literature specific to this family: Mohana Rao, P.R. 1974. Seed anatomy in some Hamamelidaceae and phylogeny. Phytomorphology 24:113–139.

General references: Corner, E.J.H. 1976. The seeds of Dicots, esp. vol. 2. Cambridge University Press, New York, Cronquist, A. 1981. An integrated system of classification of flowering plants, 1,262 p. Columbia University Press, New York, Goldberg, A. 1986 (dicots) & 1989 (monocots). Classification, evolution, and phylogeny of the familes of Dicotyledons. Smithsonian Contr. Bot. 58 for dicots (314 pp.) & 71 for monocots (74 pp.). [Goldberg's illustrations are reproduced from older publications and these should be consulted], Gunn, C.R., J.H. Wiersema, C.A. Ritchie, & J.H. Kirkbride, Jr. 1992 & amendments. Families and genera of Spermatophytes recognized by the Agricultural Research Service. Techn. Bull. U.S.D.A. 1796:1–500, Hooker, J.D. 1873 and forward. Icones Plantarum. William & Norgate, London. (plate number cited in text within [ ]), Mabberley, D.J. 1987. The plant-book, 706 p. Cambridge University Press, Cambridge, Martin, A.C. 1946. The comparative internal morphology of seeds. Amer. Midl. Naturalist 36:513–660, and Schopmeyer, C.S. 1974. Seeds of Woodywoody:
texture—consisting mainly of indurate lignified tissues, characteristic of or resembling wood
plants in the United States. Agric. Handb. 450:1–883.

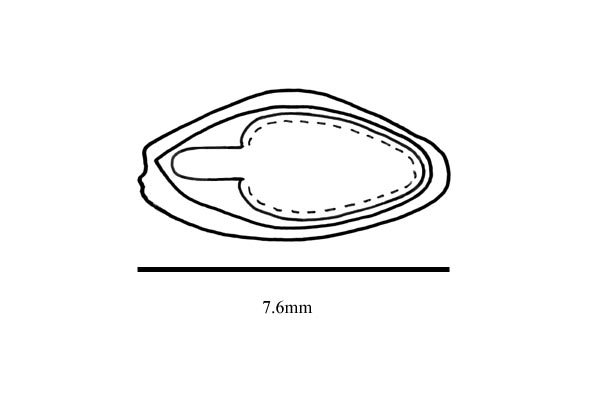

 Embryo:  Altingia excelsa ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Altingia excelsa; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Corylopsis sinensis ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Corylopsis sinensis; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Dicoryphe viticoides ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Dicoryphe viticoides; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Distyliopsis dunnii ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Distyliopsis dunnii; Illustration by K. Parker, Kirkbride et al. (2006)
 Fruit:  Exbucklandia populnea ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Fruit: Exbucklandia populnea; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)

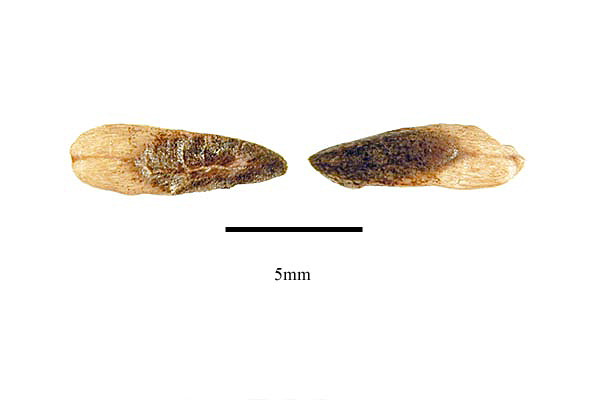

 Seeds:  Exbucklandia populnea ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Seeds: Exbucklandia populnea; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
 Embryo:  Exbucklandia populnea ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Exbucklandia populnea; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Fortunearia sinensis ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Fortunearia sinensis; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Hamamelis japonica ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Hamamelis japonica; Illustration by K. Parker, Kirkbride et al. (2006)

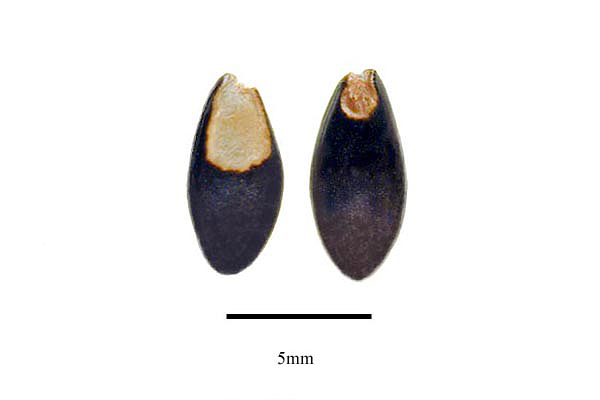

 Seeds:  Hamamelis vernalis ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Seeds: Hamamelis vernalis; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)

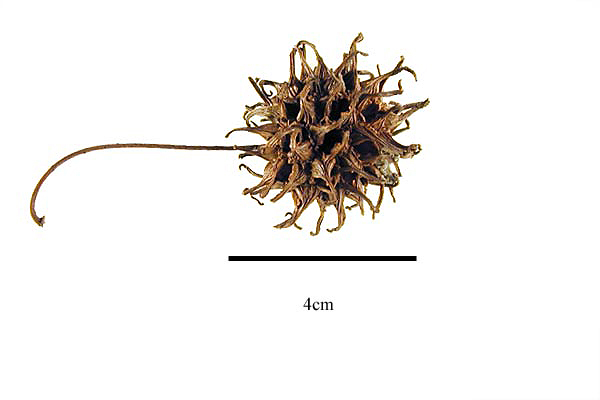

 Fruit:  Liquidambar styraciflua ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Fruit: Liquidambar styraciflua; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)

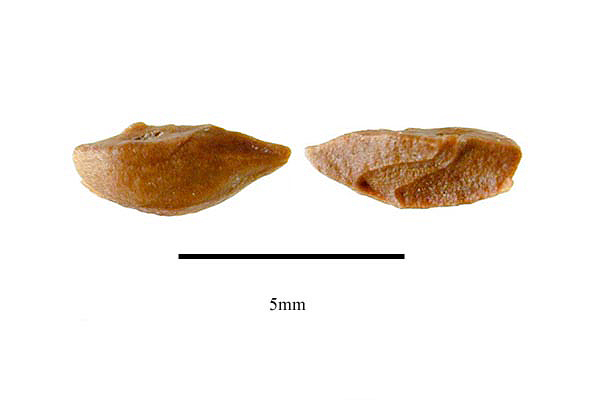

 Seeds:  Liquidambar styraciflua ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Seeds: Liquidambar styraciflua; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
 Embryo:  Liquidambar styraciflua ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Liquidambar styraciflua; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Loropetalum chinense ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Loropetalum chinense; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Parrotia persica ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Parrotia persica; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Rhodoleia championii ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Rhodoleia championii; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Sycopsis sinensis ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Sycopsis sinensis; Illustration by K. Parker, Kirkbride et al. (2006)
