Fagaceae

Disclaimer

Content is from Kirkbride et al. 2006Kirkbride et al. 2006:
Kirkbride JH, Jr, Gunn CR, and Dallwitz MJ. 2006. Family guide for fruits and seeds, vers. 1.0. Accessed September 2020-January 2022. URL: https://nt.ars-grin.gov/seedsfruits/keys/frsdfam/index.cfm .
, without modification. Updates are forthcoming.

Taxonomy

Fagaceae Dumortier

Common name: Beech Family.

Number of genera: 9 genera.

Number of species (Mabberley 1997): 1050 species.

Disseminule

Fruit (dehisced), or fruit (intact or entire), or seed.

Description

Fruits: Pistil(s) 1; 1-pistillate. Fruit anthocarpanthocarp:
simple or compound and including some tissue of non-ovarian origin (accessory tissue)
; simple, or compound; glans (Quercus alba L., Spjut Fig. 43C); trymosum (Castanea mollissima Blume, Spjut Fig. 53B & 2 families: Fagaceae & Moraceae); without persistent central column; with styles(s); at apexapex:
the point farthest from the point of attachment, or the "tip" of an organ
; within accessory organ(s); within imbricated scales, or involucreinvolucre:
in the grasses, a whorl or cluster of bracts or bristles subtending a floret or spikelet
, or cupule (all with or without barbless spines); accrescentaccrescent:
growing continuously
; persistent; 1-seeded to more than 1 but less than 10-seeded; 1–3-seeded; with 1–3-carpellate; with carpels united; with carpels remaining united at maturity; without sterilesterile:
lacking male and/or female reproductive parts; also, not producing fruit or seed
carpels; not sulcatesulcate:
surface relief—having one or more elongate, relatively narrow and shallow depressions or grooves
; apexapex:
the point farthest from the point of attachment, or the "tip" of an organ
not beaked; wall leatheryleathery:
texture—moderately thick, tough, and very pliable
; dehiscentdehiscent:
(v. dehisce) splitting open at maturity to release contents (of a fruit)
, or indehiscentindehiscent:
not opening on its own, as in a fruit
. Dehiscentdehiscent:
(v. dehisce) splitting open at maturity to release contents (of a fruit)
unit seed(s). Dehiscentdehiscent:
(v. dehisce) splitting open at maturity to release contents (of a fruit)
passively; without replumreplum:
the rim, formed by the persistent placentas, and connected by a false septum in Brassicaceae fruits. The fruit valves are attached to this rim and separate from it in dehiscent fruits.
. Epicarpepicarp:
outer layer of fruit wall or pericarp, if divided into layers; note here used synonymously with exocarp
brown (all shades); shinyshiny:
uniformly reflecting a high proportion of incident light at all angles
, or dulldull:
reflecting only a low proportion of incident light, with no apparent sheen
; durable; leatheryleathery:
texture—moderately thick, tough, and very pliable
, or coriaceouscoriaceous:
texture—leathery
; glabrousglabrous:
without hairs
; without armature, or with armature; with bristles, or spines; without armature glochidiate; smooth, or not smooth; without wing(s); without apicalapical:
at or pertaining to the end of the seed or fruit distal from its point of attachment (i.e., base)
respiratory hole. Mesocarpmesocarp:
the middle layer of the pericarp, if divided into layers
absent. Endocarpendocarp:
the inner layer of the pericarp, if divided into layers
present; not separating from exocarpexocarp:
outer layer of fruit wall or pericarp, if divided into layers; note here used synonymously with epicarp
; thin; not splitting into 1-seeded pyrenes; smooth; without wing; without operculumoperculum:
a dehiscent cap (or lid) of a seed or fruit that opens during germination or dehiscence
; without secretory cavities; without mechanism for seedling escape; without grooves; without longitudinallongitudinal:
of or relating to length or the lengthwise dimension
ridges. Funiculusfuniculus:
(alt. funicle) stalk connecting the ovule (later seed) to the ovary (later fruit) placenta
short; short without seed bearing hookswith hooks:
bristles or spines with curved or backwards pointing tips, or with secondary bristles along their length
(retinacula); not persisting in fruit after seed shed.

Seeds: Arilaril:
(broad sense) appendicular structure that wholly or partly envelops a seed and is produced from or a modification of the funicle, raphe, or outer integument; usually fleshy or pulpy, sometimes spongy or tufted-capillate, often brightly colored
absent. Seed larger than minute; in transection tereteterete:
approximately circular in cross section; width and thickness approximately equal
, or triangulartriangular:
2D shape—three relatively straight sides with distinct corners; more angular than teardrop-shaped
; not bowl shaped; not nutlike; without winglike beakbeak:
a usually firm, terminal appendage, sometimes tapered
; without caudatecaudate:
tapering to a long, tail-like appendage
appendage(s); at maturity without food reserves, or with food reserves; with endosperm; without canavanine. Sarcotestasarcotesta:
pulpy or fleshy outer layer of the seed coat, simulates aril
absent. Testatesta:
seed coat
present; without fleshy or leatheryleathery:
texture—moderately thick, tough, and very pliable
layer over hard layer; tight; without crease or line separating cotyledons from hypocotyl-radicle; without notch along margin where cotyledons from hypocotyl-radicle tip approach each other; without glands; without bristles; glabrousglabrous:
without hairs
; without wings; without collar; without operculumoperculum:
a dehiscent cap (or lid) of a seed or fruit that opens during germination or dehiscence
; colored; monochrome; brown (all shades); thin; not becoming mucilaginousmucilaginous:
resembling mucilage; moist and sticky
when wetted; surrounding embryo. Endosperm development nuclear; trace (Fagus). Embryo differentiated from food reserve (but no endosperm); well developed; 1 per seed; completely filling testatesta:
seed coat
(no food reserve); at one end of seed not extending into a depression or cup; foliatefoliate:
appearing leaf-like
; with investinginvesting:
(of embryo) embryo is nearly or completely filling seed coat, straight, and axile and centric with spatulate cotyledons and covering the stalk for at least half its length; (of cotyledons) cotyledons spatulate and covering the stalk for at least half its length
cotyledons; straight; parallel to seed length; with cotyledons abruptly connected to hypocotyl-radicle; without coleorhiza; without simmondsin; with cotyledons containing oils, or starch; without stomata; not green; with 2 or more cotyledons. Cotyledons 2; well developed; 0.8–0.9 times length of embryo; 6 times wider than hypocotyl-radicle (at least & probably more); partially concealing hypocotyl-radicle, or entirely concealing hypocotyl-radicle; not foliaceous; thick, or thin; much folded, or twice-folded, or sinuous, or flat; ruminateruminate:
testa or seed coat folded into the endosperm
; with apicesapex:
the point farthest from the point of attachment, or the "tip" of an organ
entire; with margins separate; basally entire, or cordatecordate:
2D shape—heart-shaped, with attachment at or near the broad end (compare obcordate)
; equal in size; not punctatepunctate:
surface relief—dotted with pits or with translucent, sunken glands or with colored dots, similar to pitted
dotted. Hypocotyl-radicle moderately developed, or small; straight; not thickened.

Distribution

General distribution: Pantropical (except tropical & southern Africa). New World and Old World.

Detailed distribution: North America to Oceania (except tropical & southern Africa).


Notes

Cronquist, Goldberg, & Mabberley placed Nothofagus in Fagaceae.

References

General references: Corner, E.J.H. 1976. The seeds of Dicots, esp. vol. 2. Cambridge University Press, New York, Cronquist, A. 1981. An integrated system of classification of flowering plants, 1,262 p. Columbia University Press, New York, Engler, A. & K. Prantl. 1924 and onward. Die Natürlichen Pflanzenfamilimien. W. Engelman, Leipzig, Gaertner, J. 1788–1805. De fructibus et seminibus plantarum. The Author, Stuttgart, Goldberg, A. 1986 (dicots) & 1989 (monocots). Classification, evolution, and phylogeny of the familes of Dicotyledons. Smithsonian Contr. Bot. 58 for dicots (314 pp.) & 71 for monocots (74 pp.). [Goldberg's illustrations are reproduced from older publications and these should be consulted], Gunn, C.R., J.H. Wiersema, C.A. Ritchie, & J.H. Kirkbride, Jr. 1992 & amendments. Families and genera of Spermatophytes recognized by the Agricultural Research Service. Techn. Bull. U.S.D.A. 1796:1–500, Mabberley, D.J. 1987. The plant-book, 706 p. Cambridge University Press, Cambridge, Schopmeyer, C.S. 1974. Seeds of Woodywoody:
texture—consisting mainly of indurate lignified tissues, characteristic of or resembling wood
plants in the United States. Agric. Handb. 450:1–883, Spjut, R.W. 1994. A systematic treatment of fruit types. Mem. New York Bot. Gard. 70:1–182, and Wood, C.E., Jr. 1974. A student's atlas of flowering plants: Some dicotyledons of eastern North America, 120 pp. Harper & Row, New York.

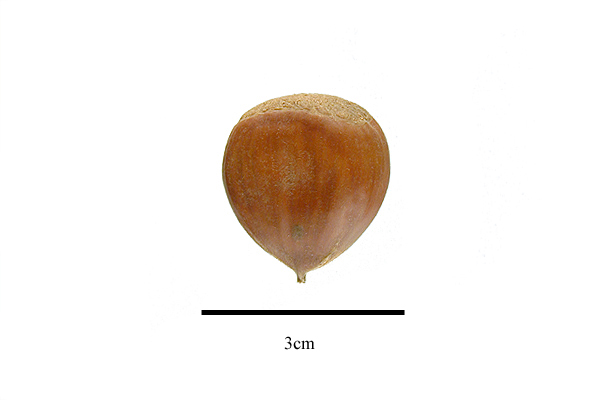

 Fruit:  Castanea crenata ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Fruit: Castanea crenata; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)

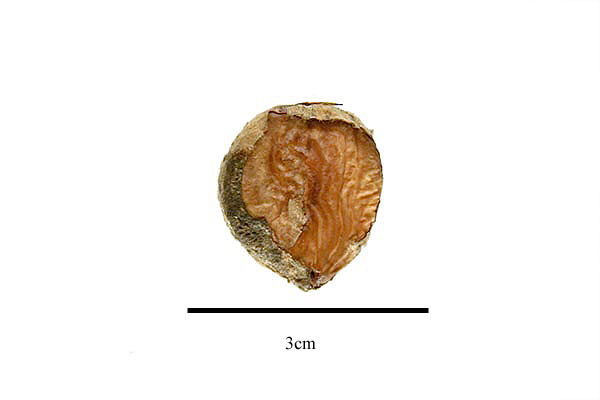

 Seed:  Castanea crenata ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Seed: Castanea crenata; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)

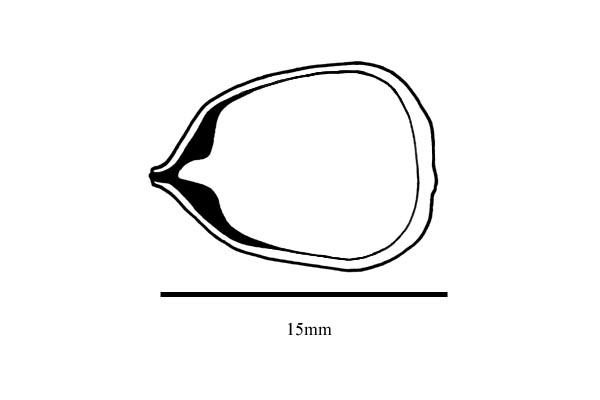

 Embryo:  Castanea pumila ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Castanea pumila; Illustration by K. Parker, Kirkbride et al. (2006)
 Embryo:  Castanopsis cuspidata ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Castanopsis cuspidata; Illustration by K. Parker, Kirkbride et al. (2006)
 Fruit:  Fagus sylvatica ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Fruit: Fagus sylvatica; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)

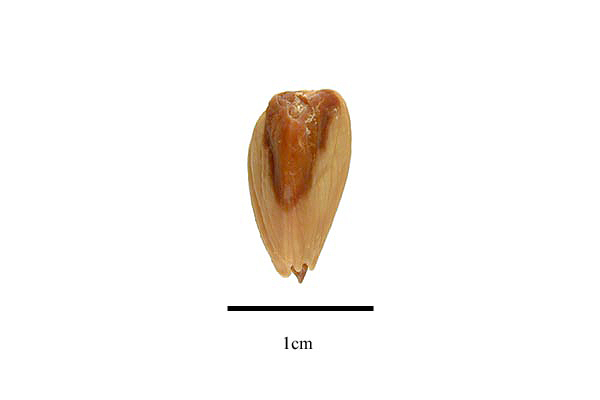

 Seed:  Fagus sylvatica ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Seed: Fagus sylvatica; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
 Embryo:  Fagus sylvatica ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Fagus sylvatica; Illustration by K. Parker, Kirkbride et al. (2006)
 Fruit:  Lithocarpus brevicaudatus ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Fruit: Lithocarpus brevicaudatus; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)

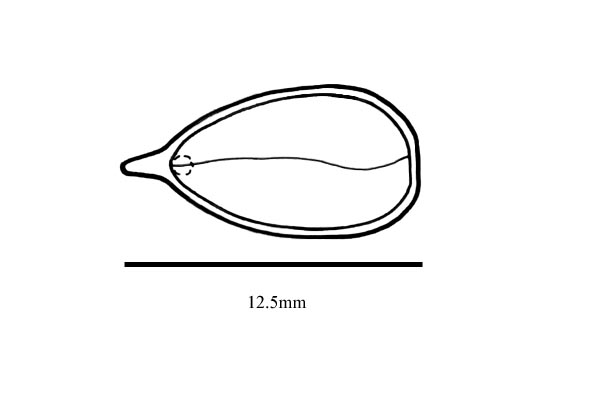

 Embryo:  Lithocarpus densiflorus ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Lithocarpus densiflorus; Illustration by K. Parker, Kirkbride et al. (2006)

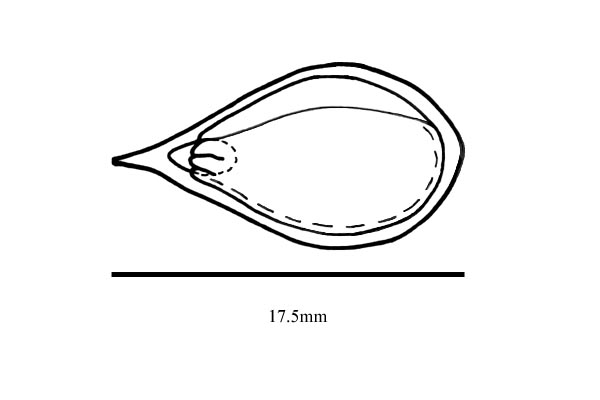

 Embryo:  Quercus serrata ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Quercus serrata; Illustration by K. Parker, Kirkbride et al. (2006)

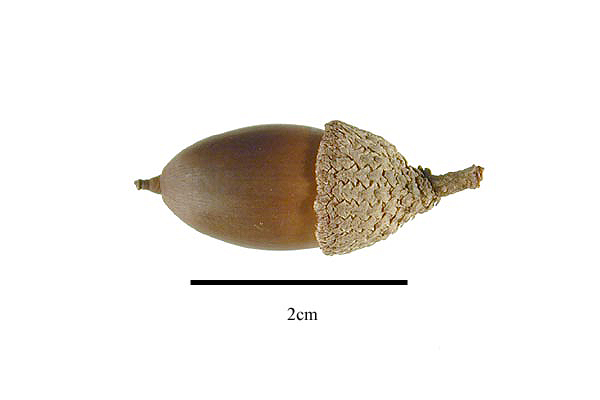

 Fruit:  Quercus virginiana ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Fruit: Quercus virginiana; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)

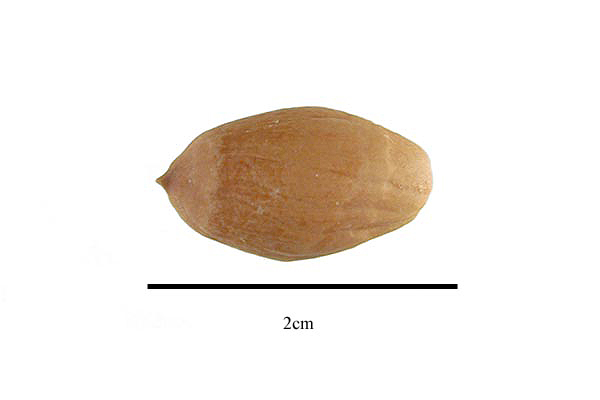

 Seed:  Quercus virginiana ; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
Seed: Quercus virginiana; Photo by R. Gibbons, USDA APHIS PPQ, Kirkbride et al. (2006)
 Embryo:  Trigonobalanus verticillata ; Illustration by K. Parker, Kirkbride et al. (2006)
Embryo: Trigonobalanus verticillata; Illustration by K. Parker, Kirkbride et al. (2006)
