Zollernia

Taxonomy

Zollernia M.A.P. zu Wied-Neuwied & C.G.D. Nees von Esenbeck Nova Acta Phys.-Med. Acad. Caes. Leop.-Carol. Nat. Cur. 13(2): Praef. 13. 1826.

Subfamily: Faboideae.
Phylogenetic Number: 3.1.11.
Tribe: Swartzieae.
Group: Lecointea.
Species Studied - Species in Genus: 3 studied; ca. 12 in genus.

Description

Fruit: A nutletnutlet:
small, hard, indehiscent, one-seeded fruit
, or a legumelegume:
usually dry, dehiscent fruit derived from a single carpel that opens along two longitudinal sutures
(only Z. magnifica A.M. de Carvalho & R.C. Barneby); unilocular; 1.4–1.7 cm long; 1–1.3 cm wide, or 8–15.5 cm wide; 0.7–1 cm thick, or 4.5–5.5 cm thick; length less than twice as long as width, or 2–9 times longer than wide; with deciduous androecial sheath; with deciduous corolla; with deciduous calyx; without orifice formed by curving of fruit or fruit segments; straight, or curved (slightly); not plicate; not twisted; asymmetrical; circular, or ovate, or oblong; with both sutures parallelly curved; not inflated; compressed, or terete; without beak, or with beak; straight; with solid beak the same color and texture as fruit; rounded at apex, or short tapered at apex; oblique with longitudinal axis of fruit, or right-angled with longitudinal axis of fruit; rounded at base, or short tapered at base; aligned with longitudinal axis of fruit; with the apex and base uniform in texture; ligneous; seed chambers externally invisible; margin not constricted; margin without sulcus; margin plain; wing(s) absent; substipitate, or nonstipitate; indehiscent. Replum invisible. Epicarp dull; monochrome; reddish brown; with surface texture uniform; glabrous, or pubescent and indurate; with hairs erect; with 1 type of pubescence; densely puberulent; with pubescence golden, or brown (reddish); with pubescence uniformly distributed; with simple hairs; pliable; with hair bases plain; eglandular; without spines; not smooth; with elevated features; not veined; not tuberculate; shagreen, or wrinkled; not exfoliating; without cracks; without embedded tissue, much thicker than epicarp, running from base to apex. Mesocarp present; thick (filling up valves and forming a cavity in each valve); surface not veined; 1-layered; without balsamic vesicles; without fibers; without reniform canals; solid (but porous); (sub-) ligneous. Endocarp present; visible; dull; opaque; monochrome; tan; faintly rugose; without adhering pieces of testa; nonseptate; chartaceous; not exfoliating; remaining fused to mesocarp and epicarp; without wings; entire. Seed(s) 1–6 (Carvalho and Barneby, 1993); length oblique to fruit length; neither overlapping nor touching, or touching; in 1 series. Funiculus 2.5–3 mm long (estimated, Z. magnifica measured at 2.7); of 1 length only; triangular, or filiform; straight. Aril absent.

Seed: 10–11 mm long, or 36 mm long; 7 mm wide, or 22 mm wide; 5.5–6 mm thick, or 16 mm thick; not overgrown; angular; asymmetrical, or symmetrical; ovate, or elliptic (terminal seeds at each end of Z. magnifica fruit obtusely conical); compressed; with surface smooth; without visible radicle and cotyledon lobes; without hilar sinus; without umbo on seed faces; without medial ridge on each face. Cuticle not exfoliating; not inflated; not wrinkled. Testa present; without pieces of adhering epicarp; not adhering to endocarp; free from endocarp; dull; not modified by a bloom; colored; monochrome; reddish brown; glabrous; not smooth, or smooth; with elevated features; shagreen; coriaceous. Pleurogram absent. Pseudopleurogram absent. Fracture lines absent. Rim absent. Wing(s) absent. Raphe visible; from hilum through base of seed and up the other side; not bifurcating; color of testa; somewhat recessed. Hilum present; visible; without faboid split; punctiform; subapical to radicle tip; flush; not within corona, halo, or rim. Lens not discernible. Endosperm absent. Cotyledons smooth; both outer faces convex; both the same thickness; both more or less of equal length; not folded; margin entire 180 degrees from base of radicle; similar at apex; partially concealing radicle; notched at radicle; without lobes; with the interface division terminating at base of radicle; without margins recessed; tan; inner face flat; glabrous on inner face. Embryonic axis oblique; weakly oblique to length of seed; without a joint evident between the radicle and the cotyledons. Radicle differentiated from cotyledon; truncate; weakly oblique to cotyledons; centered between cotyledons; less than 1/2 length of cotyledons. Plumule rudimentary; glabrous.

Distribution

Central America, Guianas, and Brazil.

New World; Central America to South America (Guianas and Brazil); Brazil and Ecuador.

Generic Notes

Mello Filho and Andrade (1967) studied the Amazonian species, and Carvalho and Barneby (1993) treated the species of Bahia, Brazil.

Tribal Notes

Tribe Swartzieae

Swartzieae has been assigned to Caesalpinioideae (Cowan, 1968), Swartzioideae (de Candolle, 1825a, 1825b; Corner, 1976), and Faboideae (Bentham, 1865, Hutchinson, 1964, Cowan, 1981). In 1968, Cowan (1968) was unable "finally to resolve the sub-familial relationship of Swartzia," but in 1981, he (Cowan 1981) placed it in the Faboideae and stated, "... features appear to support the arrangement adopted here (Cowan 1981) with the Swartzieae representing a relatively less-advanced position in the Papilionoideae (Faboideae). This conclusion is now supported by wood anatomy ..., by nodulation proclivity ..., and by chemistry ...; chromosome numbers of n=8, 10 or 14 ..., as well as pollen morphology ..., do not negate this conclusion." In the most recent assessment of the Fabaceae, Polhill (1994a, 1994b) maintained Swartzieae as a basal tribe of Faboideae, "transitional to the Caesalpinioideae." He transferred four genera from Sophoreae (2) into the Swartzieae, Amburana (3.1.15), Ateleia (3.1.13), Cyathostegia (3.1.14), and Holocalyx (3.1.12), and arranged the genera in four groups corresponding to clades in Herendeen's (1994) cladistic analysis. Herendeen carried out cladistic analyses using morphological characters of all Swartzieae genera, 19 genera of Sophoreae, and three Caesalpinioideae genera. He concluded that Swartzieae is polyphyletic and that it should be disbanded and its genera transferred to Sophoreae. Preliminary rbcL data (Doyle et al. 1997) supported his conclusions. Ireland et al. (2000) also carried out molecular phylogenetic studies. They also concluded that Swartizeae is polyphyletic, and suggested that possibly tribe Swartzieae could be maintained with Swartzia (3.1.01), Bobgunnia (3.1.01A), Bocoa (3.1.02), Ateleia (3.1.13), Cyathostegia (3.1.14) and the current remaining Swartzieae genera transferred to other tribes. Our seed data neither support nor refute the overall outlines of Herendeen's cladograms; they are discussed below for a few genera. Ferguson and Skvarla (1991) reported on the pollen morphology of Aldina and Swartzia (1.01), and the nine other genera of Swartzieae are covered in Ferguson and Skvarla (1988). Their data are summarized in a computer-generated key in Vezey et al. (1991). The pollen data for the tribe should be compared with our seed-fruit morphological data.

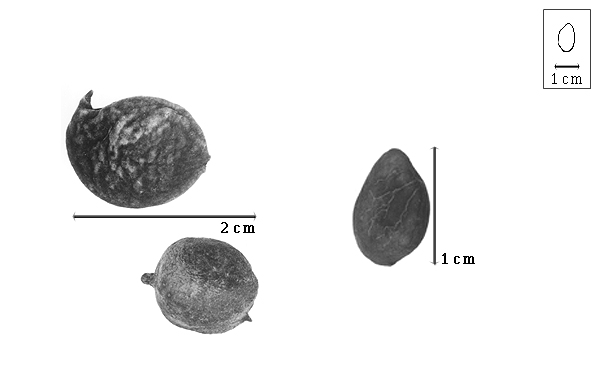

 Fruit and seed:  Z. ilicifolia  (A.T. Brongniart) J.R.T. Vogel - right seed; Z. spp. - left fruits.
Fruit and seed: Z. ilicifolia (A.T. Brongniart) J.R.T. Vogel - right seed; Z. spp. - left fruits.

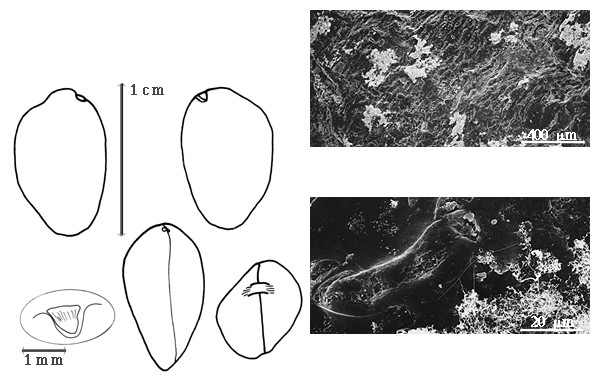

 Cotyledon, embryo, and testa:  Z. ilicifolia  (A.T. Brongniart) J.R.T. Vogel - embryo, cotyledons, and magnification;  Z. kanukuensis  R.S. Cowan - testa SEMs.
Cotyledon, embryo, and testa: Z. ilicifolia (A.T. Brongniart) J.R.T. Vogel - embryo, cotyledons, and magnification; Z. kanukuensis R.S. Cowan - testa SEMs.
